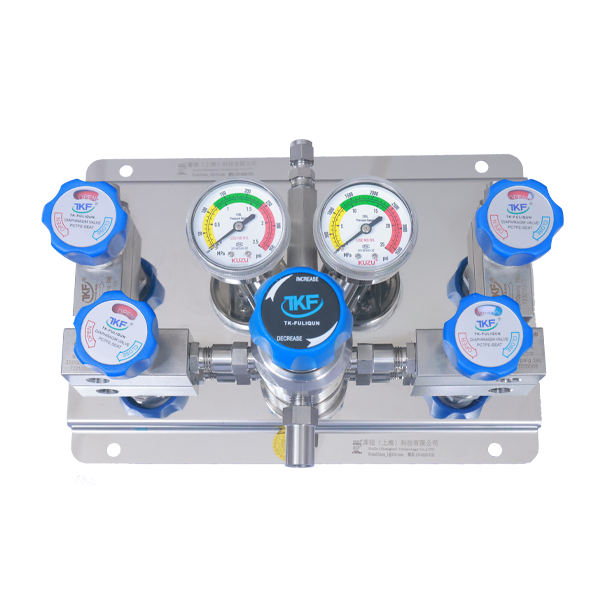

Bilateral manual switching valve group TKF-6

Brand TKF
Product origin Shanghai
Delivery time 15days
Supply capacity 50000

Bilateral manual switching valve group TKF-6 Material structure: Decompressor Matrix: SS316L Pressure reducer gasket: PTFE,PCTFE,PEEK Diaphragm Valve parent: SS316L Diaphragm: Hastelloy or piston type (optional)

Bilateral manual switching valve group TKF-6 Structural characteristics:

Adopting a single-stage pressure reducer

Diaphragm valve knob with switch indicator window internal structure for easy blowing

Can be expanded using manifold fittings

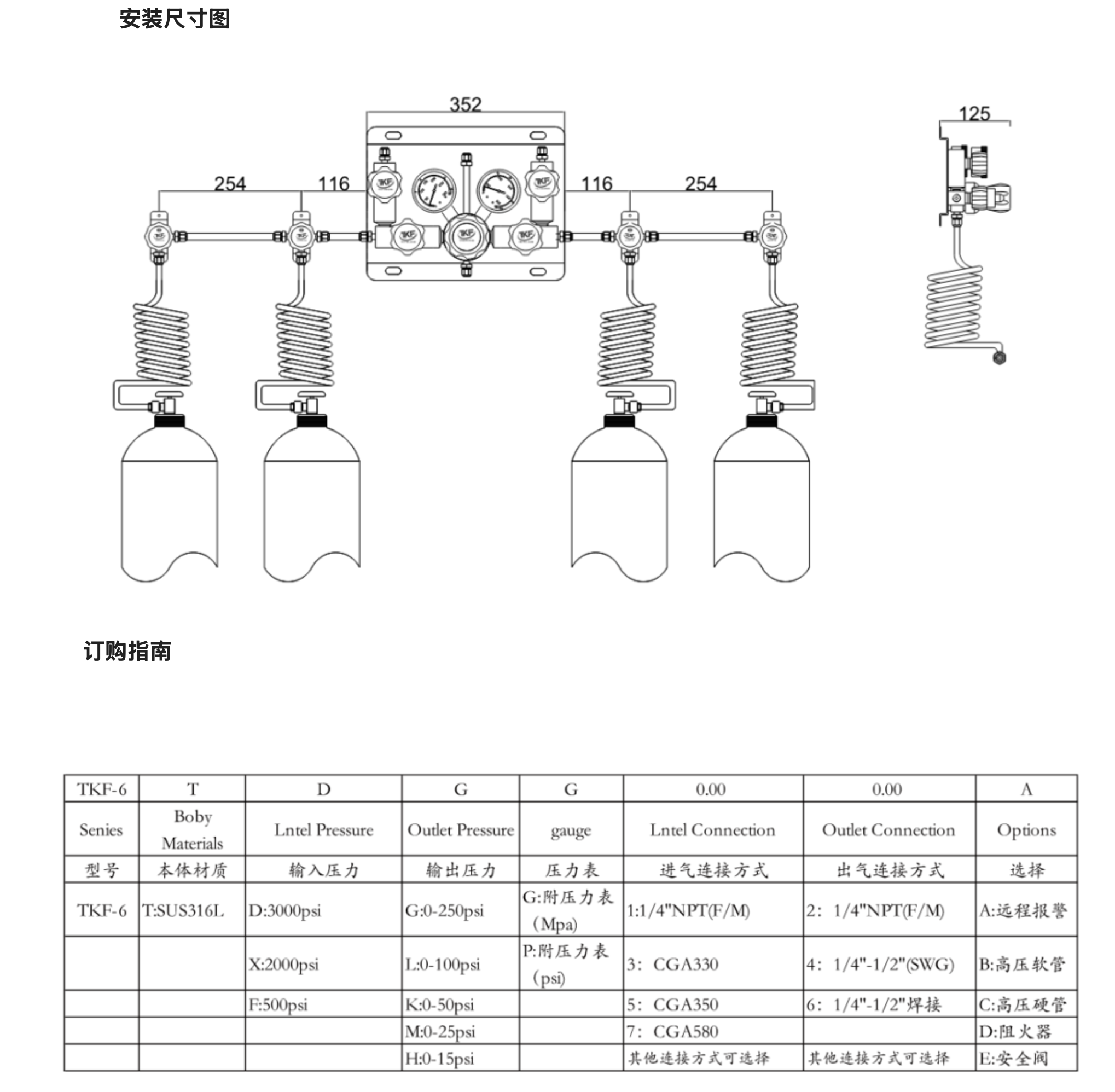

Adopting wall mounted installation

Optional pressure alarm device

Optional detachable pressure gauge

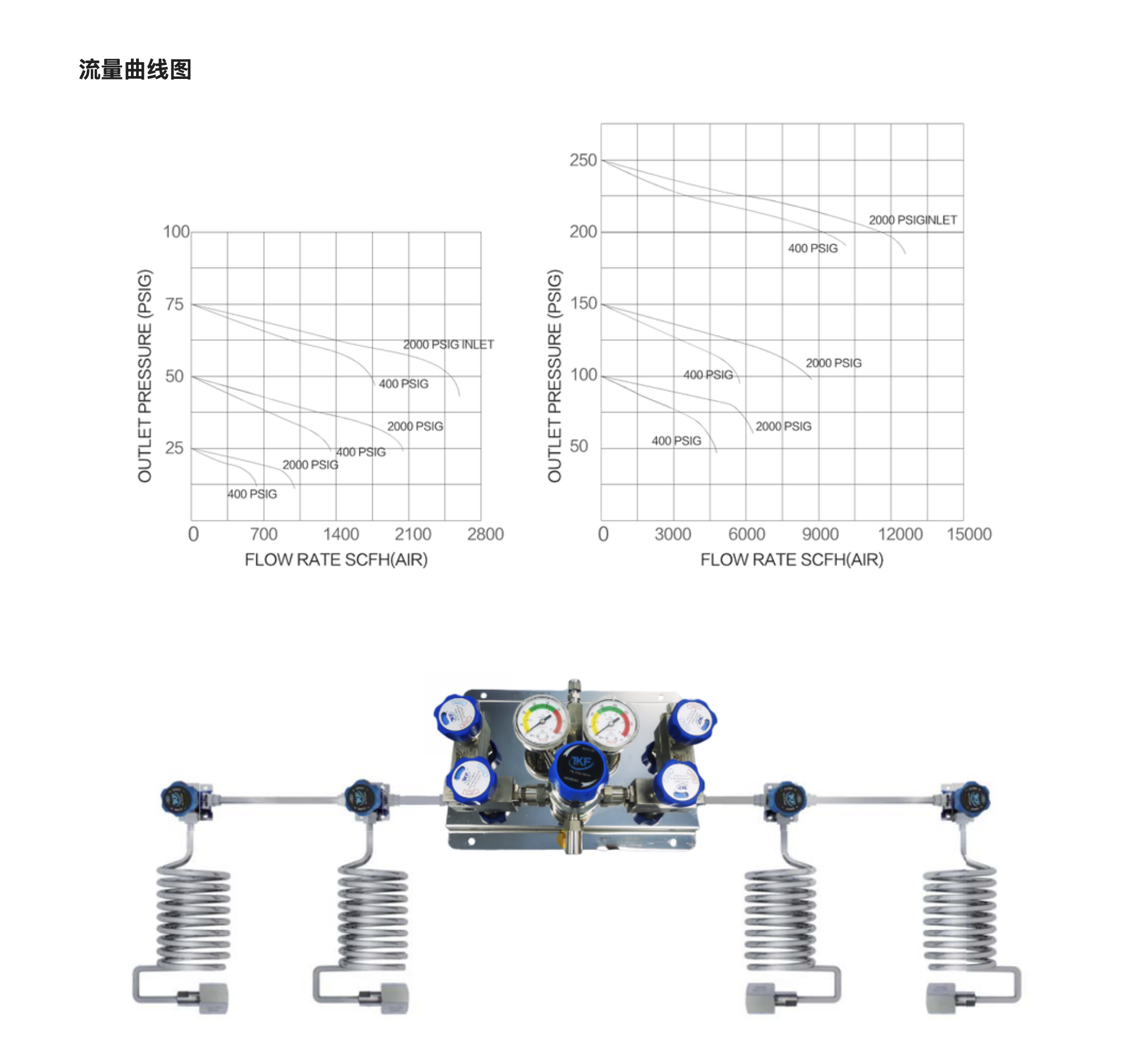

Bilateral manual switching valve group TKF-6 Technical Parameter:

Input Pressure Max.: 3000PSI

Output Pressure Outlet Pressure: 0-25 PSI, 0-50 PSI,

0-100psig,0-250psig

Proof Pressure: 1.5 times the input pressure for safety testing

Operating temperature:- 40C~+100°C

Leakage rate of pressure regulator: 2x10-8 atm cc/sec He

CV：0.08

Bilateral manual switching valve group TKF-6
