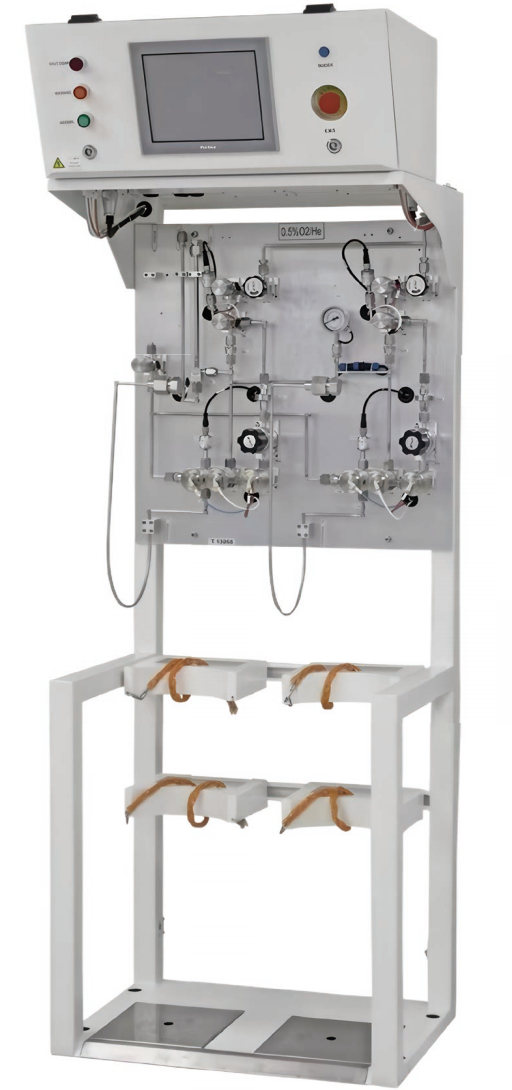

Intelligent gas cylinder rack

  • KUZU
  • Shanghai
  • 30days
  • 500000

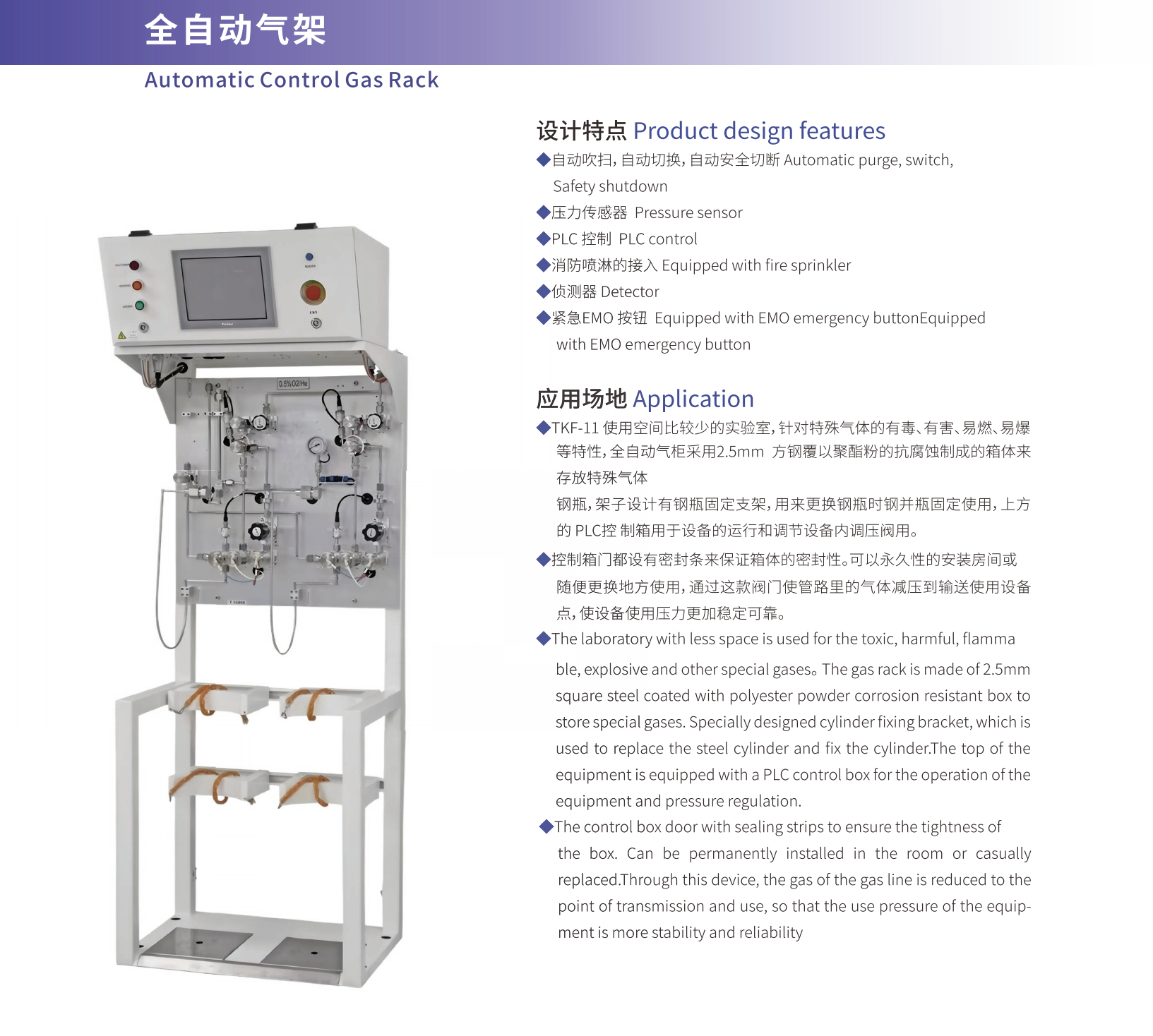

Intelligent gas cylinder rack Design Features: Automatic blowing Automatic switching Automatic safety cut-off Pressure sensor PLC control Connection of fire sprinklers Emergency EMO button for detector Explosion proof of gas cabinet

Intelligent gas cylinder rack  Application site:

TKF-11 is a laboratory with relatively limited space. In response to the toxic, harmful, flammable, and explosive characteristics of special gases, the fully automatic gas cabinet uses a 2.5mm square steel covered with anti-corrosion powder to store special gas cylinders. The rack is designed with a steel cylinder fixing bracket, which is used to fix the steel cylinder when replacing it. The PLC control box above is used for equipment operation and adjustment. The control box door for the pressure regulating valve inside the equipment is equipped with sealing strips to ensure the sealing of the box. This valve can be installed in a room or used in any other location, reducing the pressure of the gas in the pipeline to the point where the equipment is being transported, making the equipment pressure more stable and reliable.


Intelligent gas cylinder rack Advantage:

Automatic blowing, automatic switching, automatic safety cut-off, pressure sensor, PLC control, access to fire sprinkler, detector Explosion proof gas cabinet, emergency EMO button setting.

Intelligent gas cylinder rack

Intelligent gas cylinder rack

Intelligent gas cylinder rack


Tags:
Intelligent gas cylinder rack

  • How can I view KUZU's full range of pressure reducing valves?

    Visit ​​our website Reducing Valve Series​​. Explore industrial-grade regulators for laboratories, gas pipelines, and high-purity systems. Specifications and certifications are downloadable.

  • Does KUZU provide centralized gas supply solutions?

    Yes. Navigate to ​​Gas Supply Switching Series​​ on our website. Discover automated switch panels, manifolds, and safety-integrated systems compliant with ISO 13485 for labs/medical facilities.

  • ​​Smart Explosion-Proof Gas Cylinder Cabinet and Rack​

    Provide the IP protection rating, ​​maximum static load capacity​​ for cylinder racks, and ​​certified explosion-proof zone classifications​​ (e.g., ATEX/IECEx Zone 1). Specify material compatibility for corrosive gases (e.g., Cl₂, NH₃). ​​Usage Scenarios​​: Hazardous environments like chemical labs, industrial gas storage, or semiconductor fabs requiring leak containment and ignition source isolation.

  • Terminal Pressure Reducing Valve Assembly​

    Detail the ​​pressure regulation accuracy​​ (e.g., ±0.5% FS), ​​inlet/outlet pressure ranges​​ (bar), and ​​flow capacity​​ (Nm³/h). Clarify compliance with ISO 2503 for medical/lab gas systems. ​​Usage Scenarios​​: Precision gas control in HPLC instruments, laser cutting machines, or biopharma reactors requiring stable pressure amid flow fluctuations.

  • VCR Pneumatic Diaphragm Valve​

    State the ​​particle retention rating​​ (µm) for VCR diaphragm valves, ​​maximum cycling frequency​​ (cycles/min), and ​​permissible fluid viscosity​​ (cP). Include temperature/pressure curve data for steam-cleaned assemblies. ​​Usage Scenarios​​: Ultra-high-purity gas/liquid handling in semiconductor wafer processing, vaccine production, or nuclear facilities demanding zero contamination.
