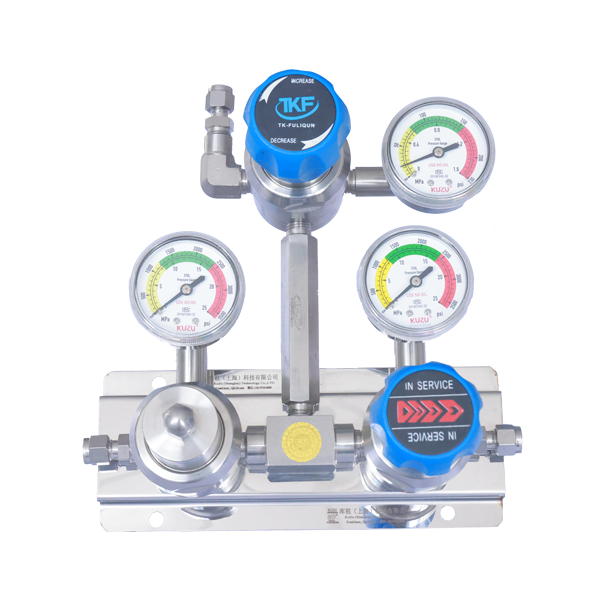

Simple bilateral automatic switching pressure reducing valve group TKF-4

Brand TKF
Product origin Shanghai
Delivery time 15days
Supply capacity 50000

Simple bilateral automatic switching pressure reducing valve group TKF-4 Material structure: Decompressor Matrix: SS316L Pressure reducer gasket: PTFE, PCTFE, PEEK diaphragm valve parent Diaphragm Valve parent: SS316L Diaphragm: Hastelloy or piston type (optional)

Simple bilateral automatic switching pressure reducing valve group TKF-4 Structural characteristics:

Adopting a two-stage pressure reducer

Diaphragm valve knob with switch indicator window

Optional safety valve configuration

Expandability can be achieved through the use of manifold fittings

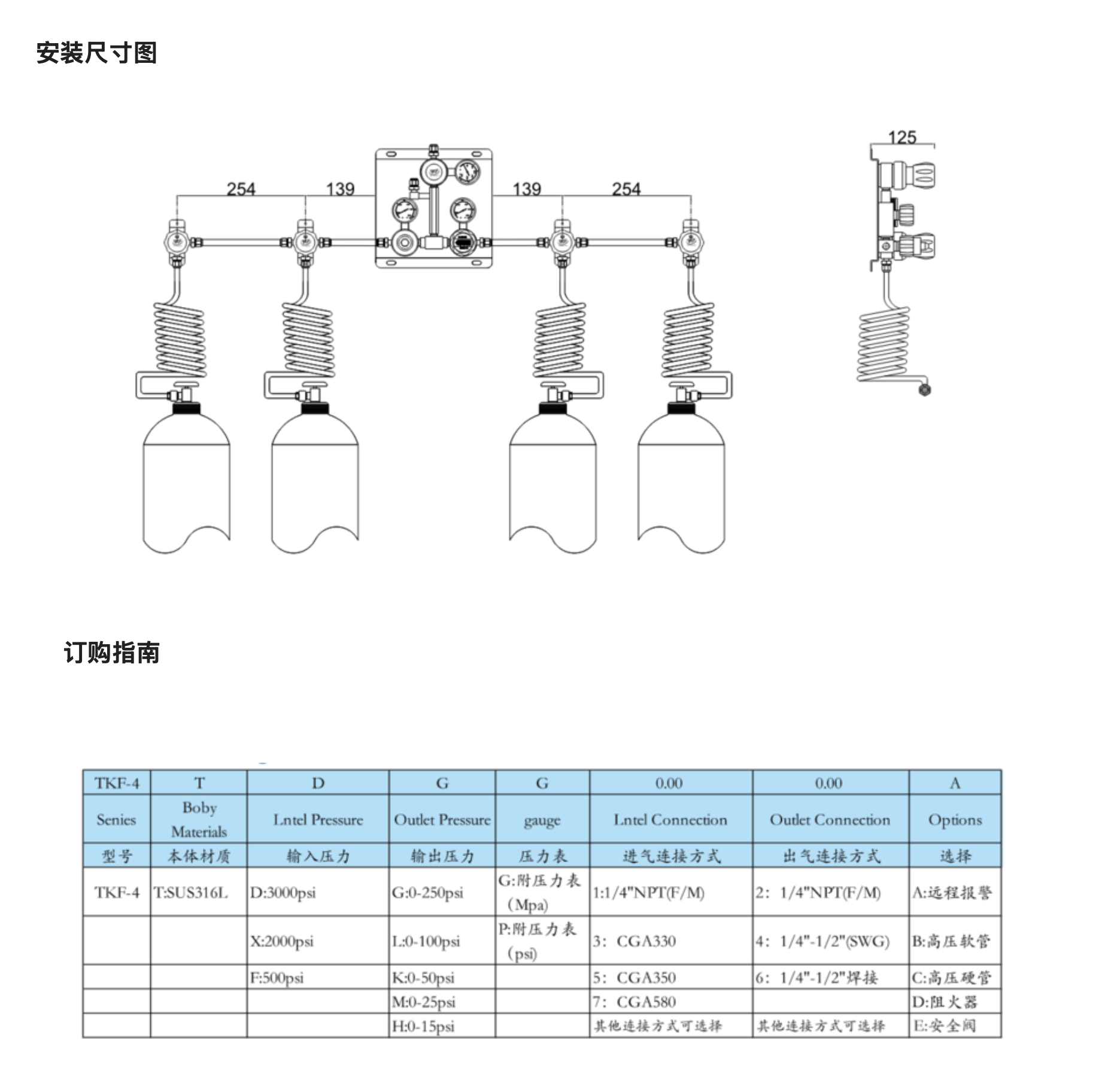

Adopting wall mounted installation

Optional pressure alarm device

Optional detachable pressure gauge

Simple bilateral automatic switching pressure reducing valve group TKF-4 Technical Parameter:

Input Pressure Max: 3000PSI

Output Pressure Outlet Pressure: 0-25 PSI, 0-50 PSI,

0-100psig,0-250psig

Proof Pressure: 1.5 times the input pressure for safety testing

Operating temperature:- 40C~+100C

Leakage rate of pressure regulator: 2x10 atm cc/sec He

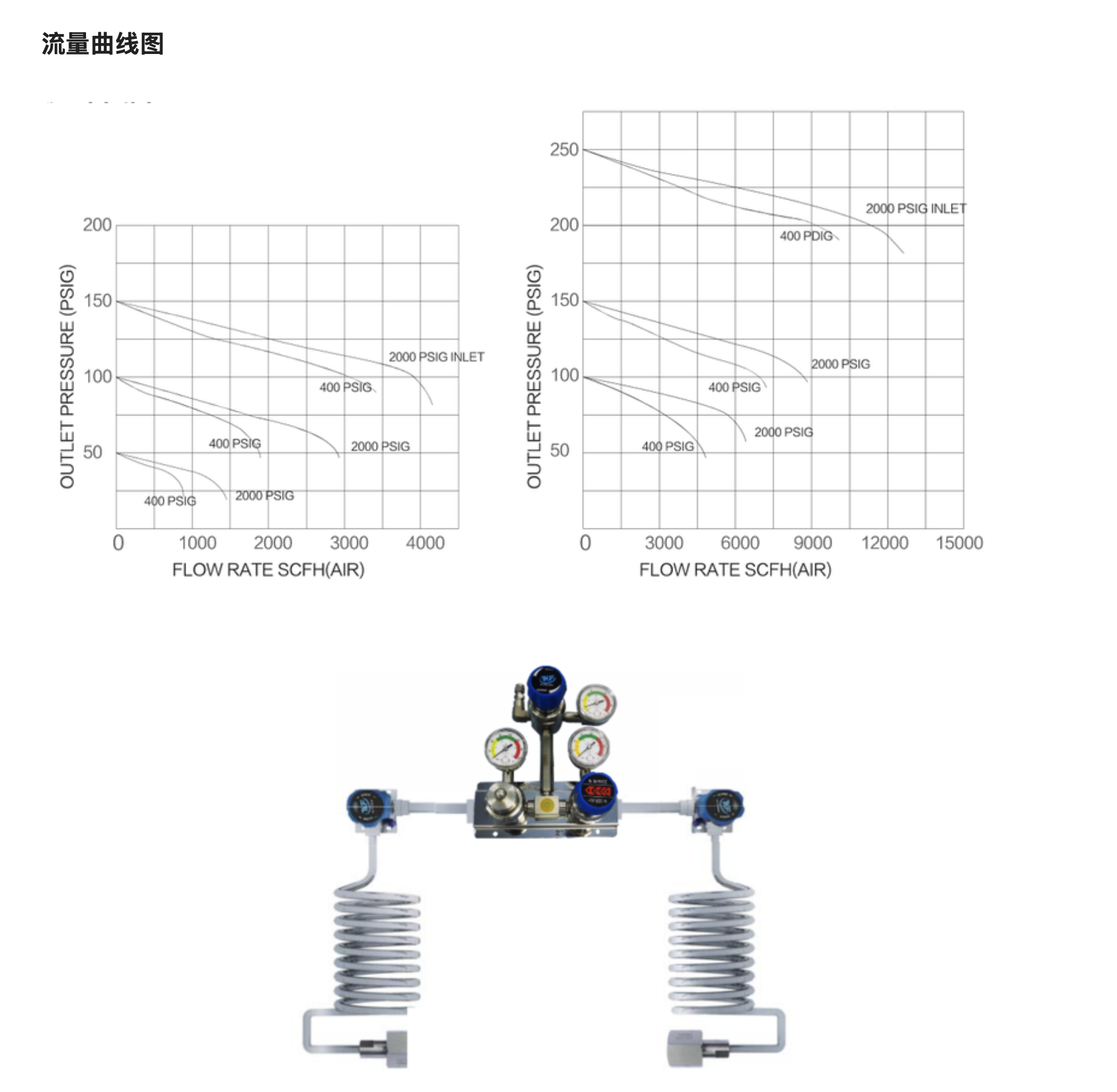

CV:0.08

Simple bilateral automatic switching pressure reducing valve group TKF-4
