TKF 5 3 Wall Mounted Radial Terminal Ball Valve Assembly is organized for buyers comparing Terminal Pressure Reducing Valve Assembly for high purity gas supply, semiconductor process gas systems, laboratory gas panels, cylinder cabinets, and industrial fluid control projects. Review the existing product details and images below, then compare related Kuzu fluid equipment for compatible sourcing options.

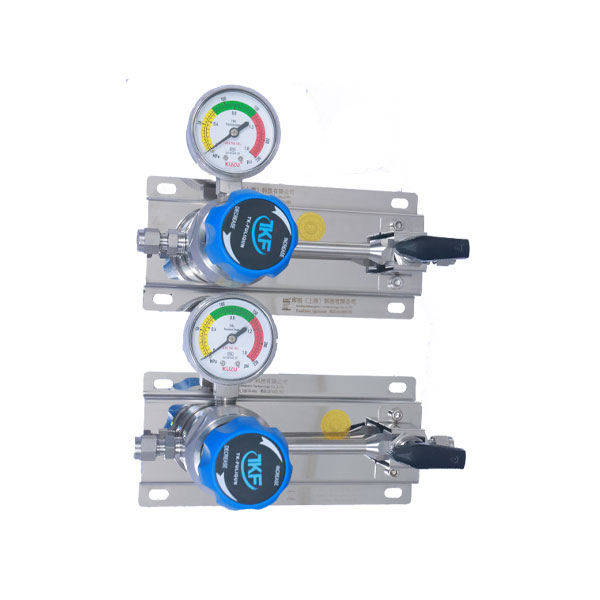

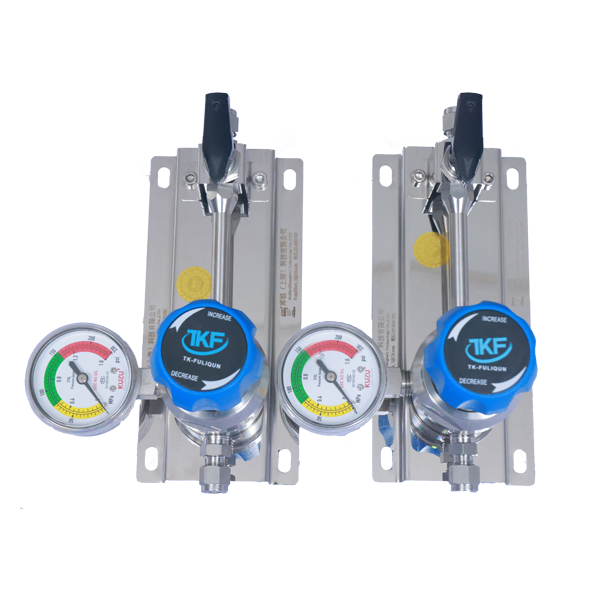

Single ball valve series wall mounted radial terminal TKF-5-3 model：
Terminal module double ball valve+pressure regulating valve+three-way valve+detachable radial pressure gauge (intake air pressure 25Mpa, outlet pressure 1.6Mpa)+stainless steel panel) (degreasing and degreasing treatment)
Terminal module double ball valve+pressure regulating valve+three-way valve+detachable radial pressure gauge (intake air pressure 25Mpa, outlet pressure 1.0Mpa)+stainless steel panel) (degreasing and degreasing treatment)
Single ball valve series wall mounted radial terminal TKF-5-3 Structural characteristics：
Assembled pressure reducing structure
Mother thread: 1/4 "NPT (F)
Can be installed in panel or wall style
